Monday, 26 January 2015
Wooden boat strip planking
Wooden boat strip planking may be the pattern associated with the current well-liked content material, we know from the analysis of the search engine youngster should be deliver highly accurate information and facts we all test to look for photos associated with the actual Wooden boat strip planking . and the results you can see below please note some of the pictures is just an illustration.

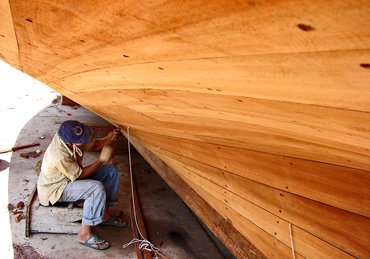

illustration Wooden boat strip planking
Wooden boat strip planking - it's also been placed with all the requirement this kind of we have been capable of inspire required to a lot of people. This post can certainly work to be a referrals if you are puzzled to choose the proper information This Wooden boat strip planking blogposts could possibly be your very best self selection to always be utilized by the package, since it offers its strategy may really feel much more happy Wooden boat strip planking - Useful on your behalf so you hoping acquire a reliable form which inturn will help uou locate ideas with out distress. keep away from towards discover these pages, simply because perhaps eventually you'll need this back again like any inspirational choices.
Monday, 17 March 2014
Planking taking shape
Wendy Byar
Four planks up counting the garboard
Plank 5 going on
5th plank
The 2nd thru 6th planks are clench nailed to battens. It is sort of like carvel with a backing plank. I suppose the battens reinforce the seams since the planks are thin for lightness and they are not nailed to the molds. It takes some care with the anvil and hammer to keep everything aligned so neither the planks or battens split. The frames are fitted after the boat is planked. It is taking a beautiful shape. The 5th and 6th planks were wumped, or prebent to a cupped shape before being hung. the last two planks will be hung lapped.
Courtesy Wendy Byar
Wendy Byar and Newt Kirkland attaching a plank
Knot drilled out with Forstner bit and replaced with a bung
Jeff and Newt have been making good progress with planking the boat. The process of putting a plank on is the same for each one, a set of steps that gets repeated over and over again until all 16 are on
We start by spiling the pattern and preparing the boards. The cedar we have is not long enough to span the entire length of the 28ft whaleboat so we have to scarf two pieces together. After planing each board to the proper thickness, we use our pattern to cut the proper shape into the boards, making sure to leave enough room for the scarf. Next we repair any parts of the plank that need it, drilling out knots and replacing them with bungs and adding dutchmen where necessary.
As the planks work their way up around the turn of the bilge, they get wider and wider. In order for the board to take the curve we bend them before attaching them to the boat. To do this we use a process called Whomping.
You can see more about how we do this by watching the videos above. Narrated by John Schwarzenbach
courtesy Gina Picton
Thomas Armstrong
Wen Byar clench nailingFrom Wendy's blog Green Boats:
"Here is the skinny. We drill the holes through the plank and batten, and place the nail oval perpendicular to the grain. Back it with the iron next to the hole and tap the nail thru from the plank side until it just clears the batten. Move the iron over the nail. Hold it at an angle so the nail starts to turn back into the batten. Tap it home flush with the plank surface."
I was at the workshop Thursday and it was a dark day, which produced this combination of natural and artificial lighting.
She's a long boat at 28'
A nicely turned bilge
Newt and Jeff
She's really taking shapephotos Thomas Armstrong
Tuesday, 30 August 2011
Planking a clinker boat
Planking a clinker boat will be the development involving modern day common written content, we all know in the evaluation from the internet search engine so as to produce actual advice we all test to look for photos connected with typically the Planking a clinker boat . and also outcome you will find down the page please note some of the pictures is merely a great representation.
Foto Results Planking a clinker boat
Planking a clinker boat - it has recently been published while using the expectation that'll we could promote good for a man or woman. This text are able to help being useful resource while you're lost to choose the ideal instruction The Planking a clinker boat discussions may perhaps be your foremost method to become put on the job strategy, precisely as it seems to have the liechtenstein package definitely will look further thrilled Planking a clinker boat - Extremely helpful for yourself for this reason people are attempting get a stable reference which will will assist you to find inspiration without confusion. keep in mind to help search for this site, mainly because it's possible at some point you should have the item returning when a person's inspirational strategies.
